Baby Lock Reflection Embroidery Machine

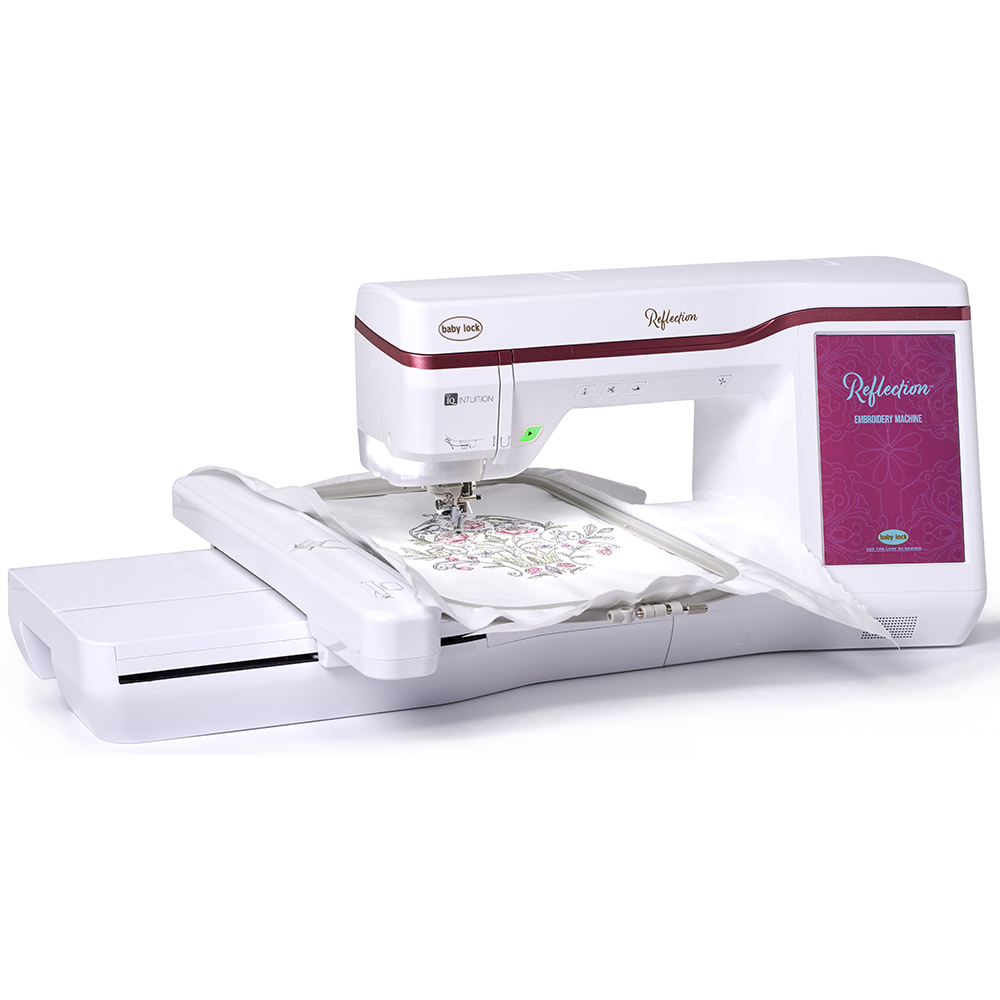

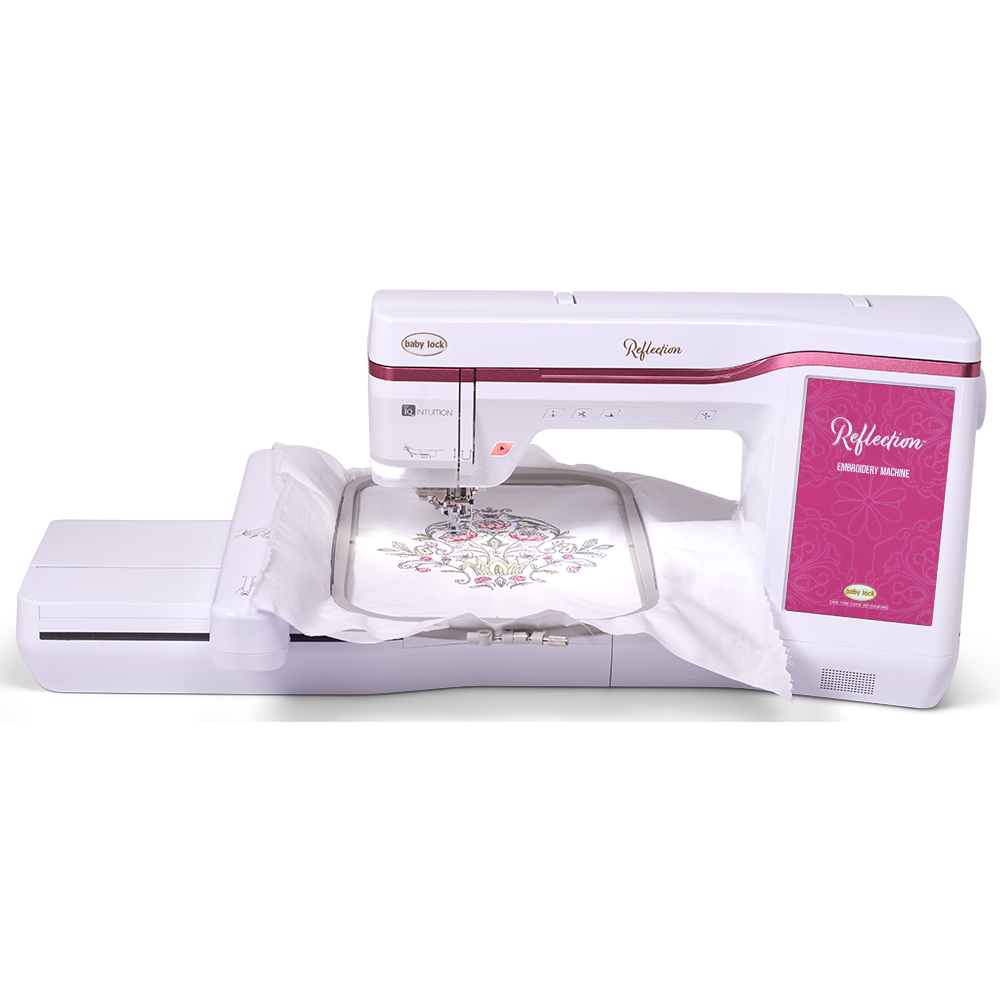

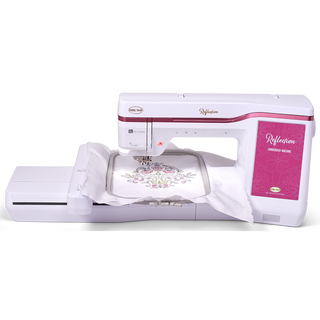

The Baby Lock Reflection is a single-needle, embroidery-only machine with a 9-1/2" x 14" field, so jacket backs, quilt blocks and large designs stitch in one hooping. It pairs that hoop with a 10.1" touch screen, 2-point positioning with an LED needle pointer, and phone alerts through the IQ Intuition Monitoring app. It suits embroiderers who already sew on another machine and want hoop size more than a big design library.

Why buy from Imagine Sewing & Vacuum

• Authorized Baby Lock dealer. Only authorized retailers can issue Baby Lock warranties, so your Reflection is covered by Baby Lock's 25-year limited warranty.
• Sewing specialists since 1922. We've helped sewists and embroiderers choose the right machine for more than a century.
• Factory-trained technicians. The people who service Baby Lock machines can help with hooping, design placement and wireless transfer questions, before and after you buy.
• Free shipping on orders over $299. This machine qualifies.

Large-format embroidery with precise placement

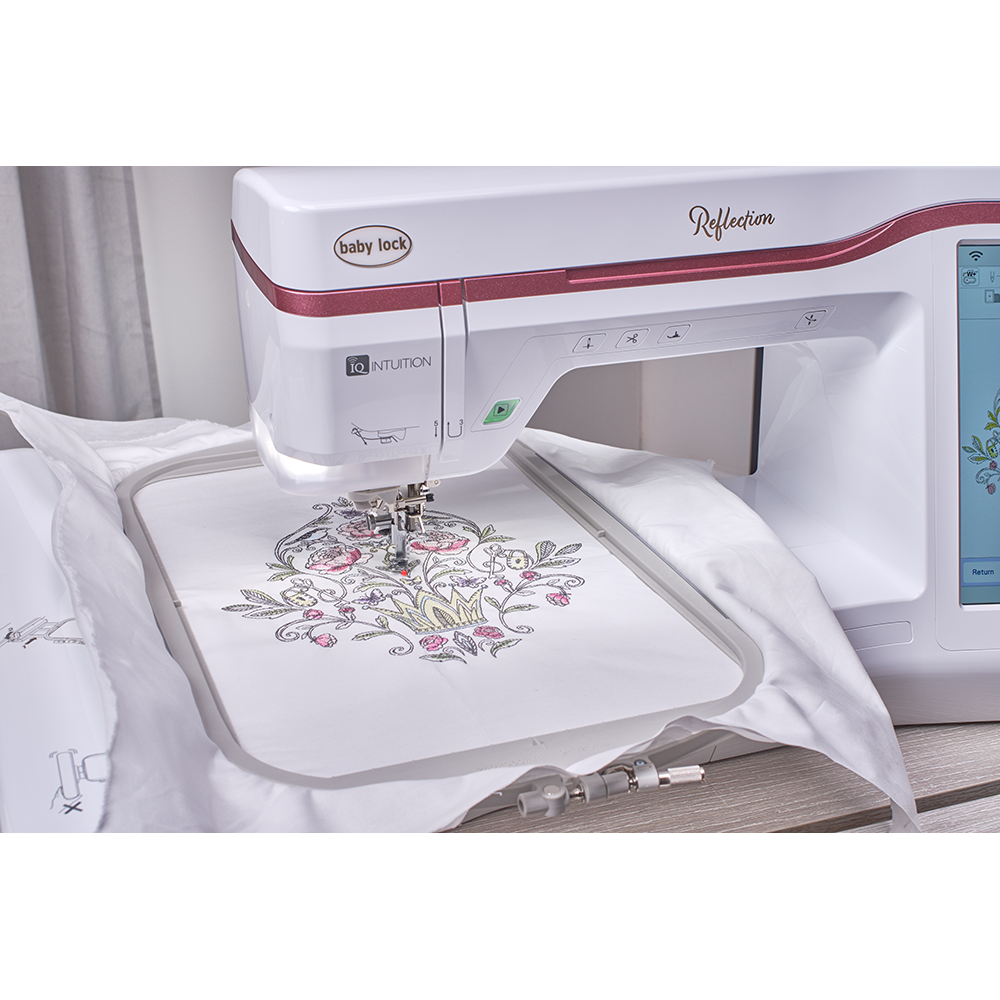

• Big designs in one hooping. The 9-1/2" x 14" (240 x 360 mm) field means less re-hooping, and 11-1/4" of space to the right of the needle gives bulky jackets and quilts room to move.

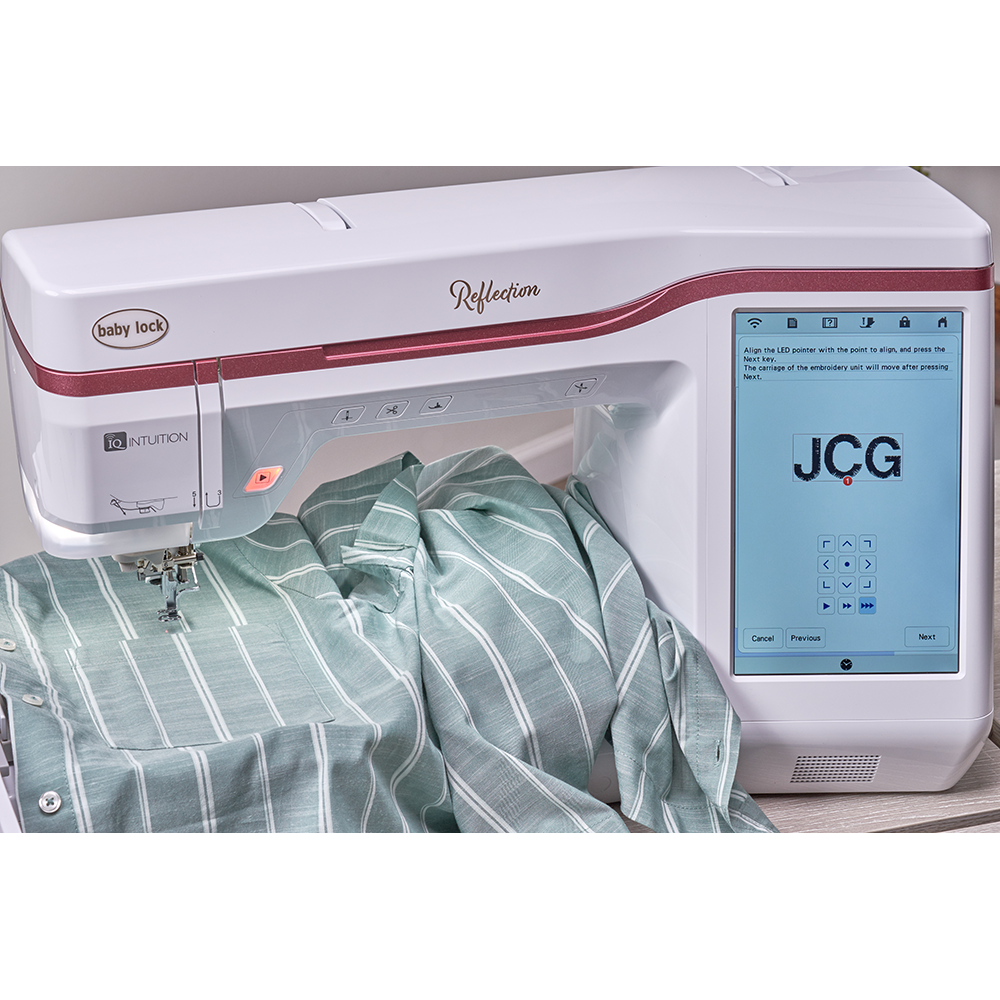

• Line designs up with what's already there. 2-point positioning uses an LED pointer to match a design's position and angle to two marks on your fabric.
• See where the needle will drop. The included "W+" embroidery foot has Baby Lock's Needle Beam, an LED pointer that marks the needle point before you stitch.
• Step away while it stitches. The IQ Intuition Monitoring app alerts your phone when the bobbin needs changing, a thread breaks, it's time for the next color and the design is done.
• A screen you can work on. The 10.1" color touch screen lets you rotate, resize and combine designs and preview them with the stitch simulator.
• Quilt around your embroidery. Add stippling, echo quilting or one of 30 decorative fills around a design for quilt blocks and wall hangings.
• Less handwork between colors. The NeverMiss automatic needle threader, automatic thread cutter, auto presser foot lift and jump stitch trimming save time at every color change.

Is the Reflection right for you?

It's the best fit if you embroider large designs, want a dedicated machine for them, and already buy or digitize your own designs. Baby Lock includes 24 designs, 26 fonts, 6 large decorative alphabets and 140 frame combinations.

Good to know before you buy: the Reflection doesn't sew. It has one needle, so you rethread for every color. There's no camera, cap frame or sleeve frame. Design Database Transfer works with Windows computers only. With the embroidery unit attached, it's about 36" wide and weighs 43.6 pounds.

• Want the same 9-1/2" x 14" field on a machine that also sews? The Baby Lock Altair 2 adds more than 770 stitches and 534 designs.
• Want to sew and embroider up to 8" x 12"? The Baby Lock Aerial has 757 stitches and 262 designs.
• Stitching smaller designs on a tighter budget? The Baby Lock Flare embroiders up to 6-1/4" x 10-1/4" and includes 293 designs.
• Running multicolor orders or embroidering caps? The Baby Lock Array has 6 needles and accepts optional cap frames.

Expert tip

"Before you stitch a design that fills most of the big hoop, touch the trace key. The carriage outlines the stitching area so you can check that it clears the hoop and the edges of your fabric. With a hoop this size, rest the extra fabric on the table so its weight doesn't pull on the hoop as it moves."

Greg, Owner, Imagine Sewing & Vacuum

Specifications

What's in the box

• Baby Lock Reflection with embroidery unit and power cord
• "W+" embroidery foot with LED pointer (on the machine)
• Embroidery hoops with grid sheets: 9-1/2" x 14" and 5" x 7"
• 10 Class 15 bobbins (one in the machine), bobbin case and bobbin cover
• Six 75/11 ball point embroidery needles
• White #90 embroidery bobbin thread and stabilizer
• Embroidery needle plate cover and touch pen
• Four spool caps, mini king spool insert, vertical spool pin, spool felt and 2 spool nets
• Seam ripper, scissors, cleaning brush and three screwdrivers
• Bobbin center pin with instruction sheet
• Accessory bag and soft cover
• Instruction and Reference Guide and Quick Reference Guide

Warranty

Baby Lock covers the Reflection with a 25-year limited warranty: 10 years on parts, 5 years on circuit boards, 5 years on electrical components and 1 year on labor. Baby Lock only honors warranties issued by its authorized retailers. Imagine Sewing & Vacuum is an authorized Baby Lock retailer, so your machine is covered. Register your Reflection at babylock.com after it arrives.

Frequently asked questions

Is the Baby Lock Reflection a sewing machine?

No. Baby Lock lists the Reflection with its single-needle embroidery machines, and its manual covers embroidery only.

What's the difference between the Reflection and the Altair 2?

Both have a 9-1/2" x 14" field, a 10.1" screen, Needle Beam, 11-1/4" of workspace and 1,050 stitches per minute. The Altair 2 also sews and includes 534 designs. The Reflection is embroidery only, with 24 designs.

Why does the Reflection have only 24 built-in designs?

Baby Lock built it around the large field and placement tools rather than a design library. It reads .pes, .phc, .phx and .dst files, so you can stitch designs you buy or digitize.

Does the Reflection have a camera?

No. You place designs with 2-point positioning and the LED pointer. Baby Lock doesn't list a camera or a positioning app for this model.

Can the Reflection embroider hats?

Not finished caps. It's a flatbed machine, and Baby Lock doesn't offer a cap frame for it. For caps, look at a multi-needle machine like the Baby Lock Array.
